S1602 DC latching solenoid

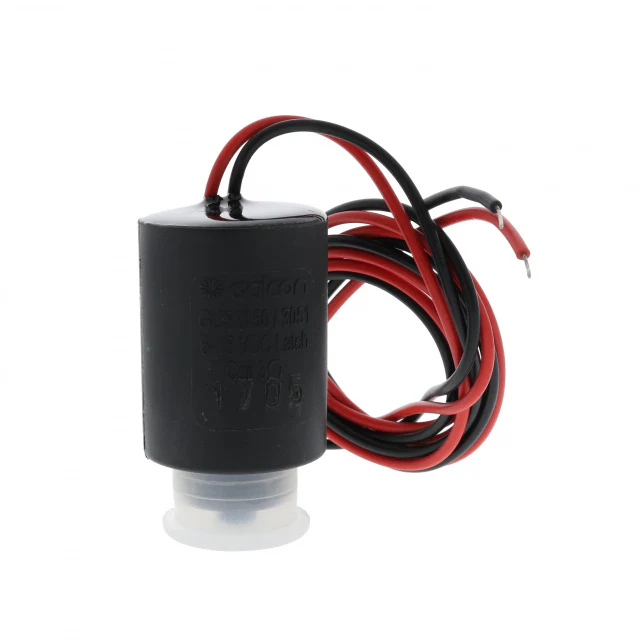

This Galcon S1602 Series DC Latching Solenoid is a two-way magnetic latching solenoid that is designed for 2-wire normally closed valves and battery operated controllers. Solenoid has 31" red/black wire leads.
Specifications:
- Coil Resistance: 3.0?, minimum pulse 20-100 mS duration at 6-18 volts
- Solenoid Thread: 3/4-20
- Operating Pressure: 10-145 PSI
- Control Orifice: 1.65 mm (0.65?)
- Operating Temperature Range: 41°F to 158°F
- Nylon reinforced plastic housing
- EPDM seals and plunger cap
- Buna-N O-ring
$6.90
Original: $23.01
-70%S1602 DC latching solenoid—
$23.01
$6.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This Galcon S1602 Series DC Latching Solenoid is a two-way magnetic latching solenoid that is designed for 2-wire normally closed valves and battery operated controllers. Solenoid has 31" red/black wire leads.
Specifications:
- Coil Resistance: 3.0?, minimum pulse 20-100 mS duration at 6-18 volts
- Solenoid Thread: 3/4-20
- Operating Pressure: 10-145 PSI
- Control Orifice: 1.65 mm (0.65?)
- Operating Temperature Range: 41°F to 158°F
- Nylon reinforced plastic housing
- EPDM seals and plunger cap
- Buna-N O-ring
